PLASTIC CLAMPS

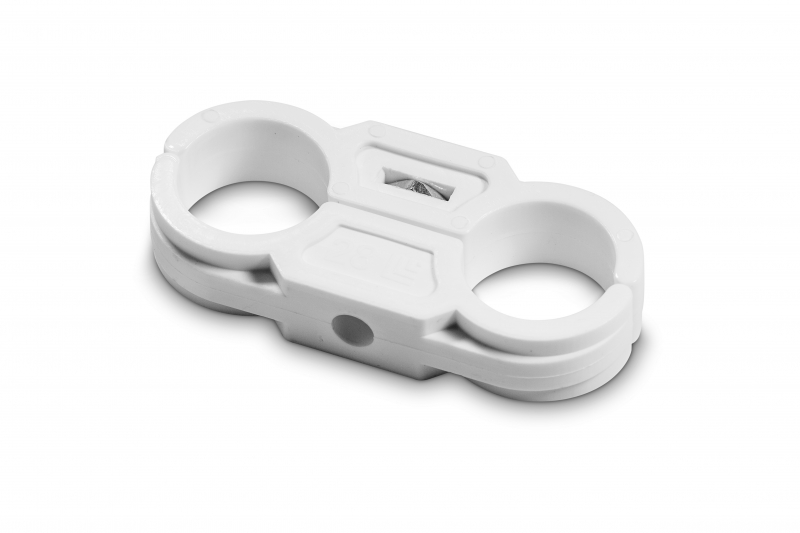

Plastic clamp OBD with nut
Plastic clamp OBD with inserted nut M8Use :

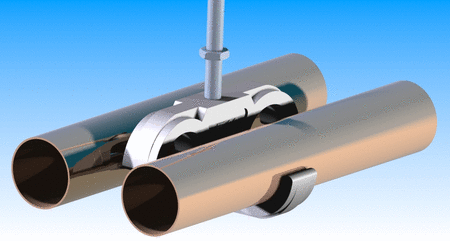

For fixing copper, metal and plastic pipes.
It is made of two equal halfs and into one half is inserted metal nut M8.
It is made of two equal halfs and into one half is inserted metal nut M8.
Dimensions :
Ø 15 - 42 mmMaterial :
PA (temperature resistance from - 30° C to +120° C)| TYPE - Dim. / mm | RASTER | ART. NUM. | PACK |
|---|---|---|---|
| OBD - 15 | 43,5 | 1358 | 20 |
| OBD - 18 | 48 | 1359 | 20 |
| OBD - 20 - 22 | 49 | 1326 | 20 |
| OBD - 25 | 52,5 | 1327 | 20 |
| OBD - 28 | 55 | 1328 | 20 |
| OBD - 32 | 59 | 1329 | 20 |
| OBD - 35 | 65 | 1330 | 20 |
| OBD - 40 - 42 | 72,5 | 1377 | 20 |
