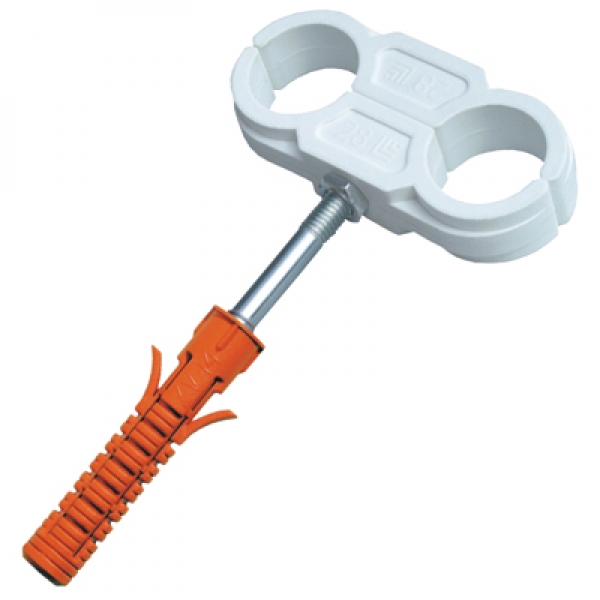

Plastic clamp OBD/V with hanger screw

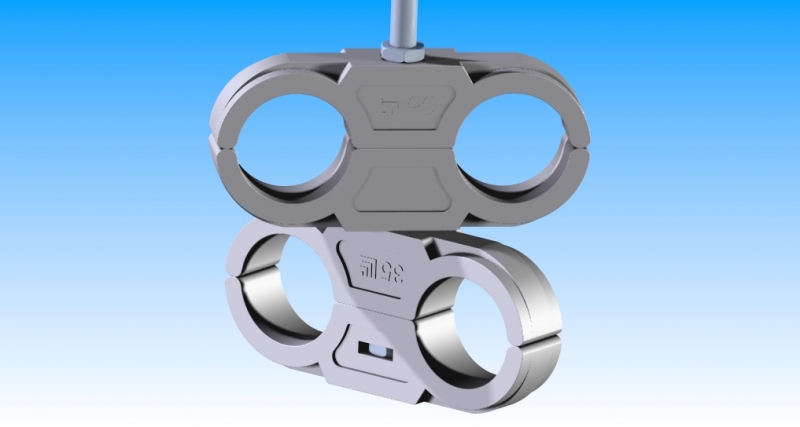

Plastic clamp OBD/V with inserted nut M8

Use :

For fixing copper, metal and plastic pipes.
It is made of two equal halfs and into one half is inserted metal
nut M8. The other half is screwed with the hanger screw, so the
clamp doesn't have to be disassemled before use.

Dimensions :

Ø 15 - 42 mm

Material :

PA (temperature resistance from - 30° C to +120° C)

TYPE - Dim. / mm	L	RASTER	ART. NUM.	PACK.
OBD / V - 15	100	43,5	1378	20
OBD / V - 18	100	48	1379	20
OBD / V - 20 - 22	120	49	1336	20
OBD / V - 25	120	52,5	1337	20
OBD / V - 28	120	55	1338	20
OBD / V - 32	130	59	1339	20
OBD / V - 35	140	65	1340	20
OBD / V - 40 - 42	140	72,5	1383	20
