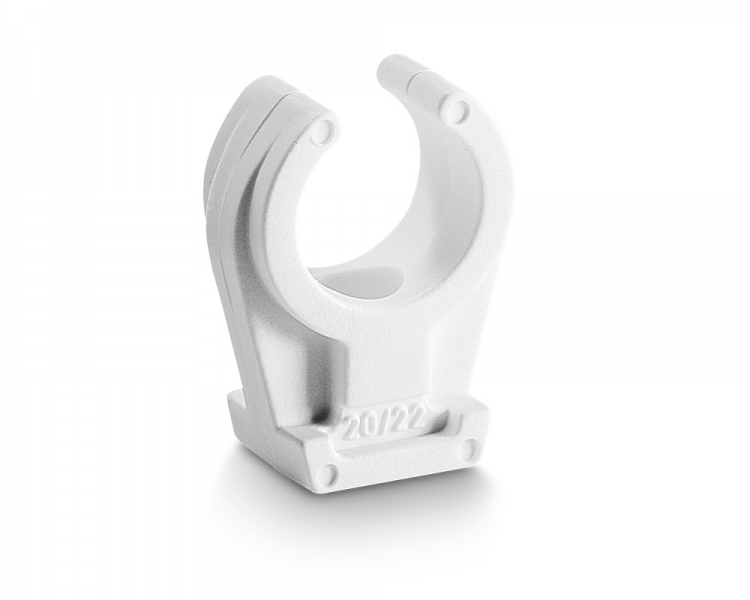

Plastic clamp    OBS/1  single

Use :

Dimensions :

Ø 8 - 50 mm

Material :

PP (temperature resistance from - 30° C to +90° C)
PA (temperature resistance from - 30° C to +120° C)

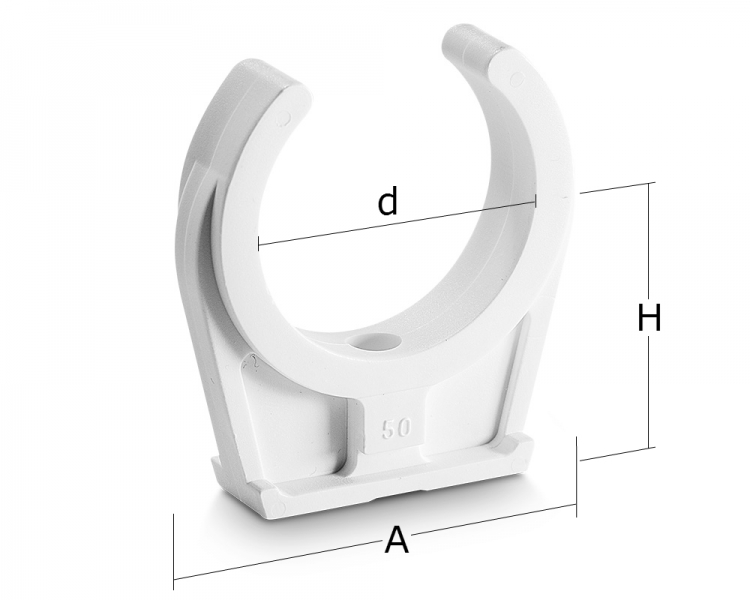

TYPE - Dim. / mm	Ø"	A / mm	H / mm	ART. NUM.	PACK.
OBS - 8		14	14	0012	100
OBS - 10	1/4"	16	15	0013	100
OBS - 12		21	16	0014	100
OBS - 14-15		24	18	0015	100
OBS - 16		28	23	0016	100
OBS - 18		28	23	0017	100
OBS - 20-22	1/2"	32	28	0018	100
OBS - 25		34	30	0019	100
OBS - 28	3/4"	40	34	0020	100
OBS - 32		45	37	1253	50
OBS - 35	1"	49	38	0021	50
OBS - 42	1 1/4"	62	42	0022	50
OBS - 50		70	50	1254	50
