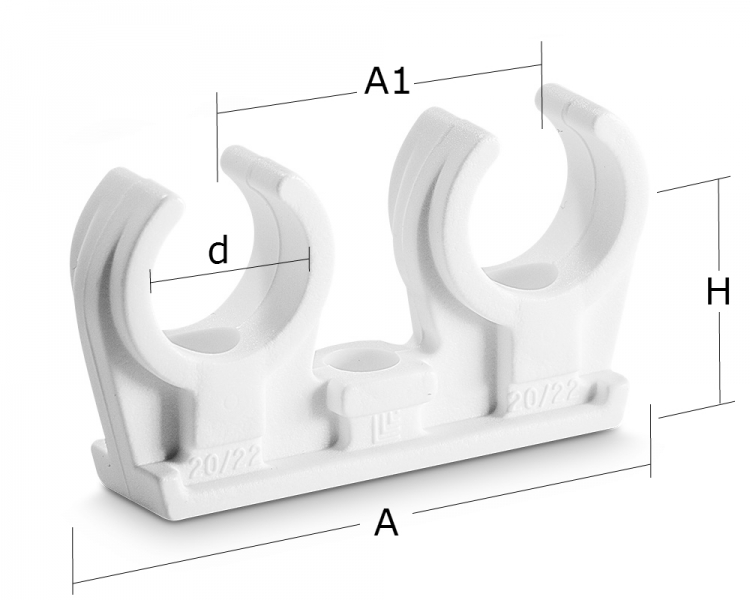

Plastic clamp   OBS/2  double

Plastic clamp   OBS / 2 - double

Use :

For fixing copper, metal and plastic pipes.
Also for fixing on C rail.

Dimensions :

Ø 6 - 35 mm

Material :

PP (temperature resistance from - 30° C to +90° C)
PA (temperature resistance from - 30° C to +120° C)

TYPE - Dim. / mm	Ø"	A / mm	A1 / mm	H / mm	ART. NUM.	PACK.
OBS / 2 - 6		35	23	11	0007	100
OBS / 2 - 8		40	26	14	0004	100
OBS / 2 - 10	1/4"	45	29	15	0003	100
OBS / 2 - 12		54	32	16	0005	100
OBS / 2 - 14 - 15		61	36	18	0006	100
OBS / 2 - 16		64	38	23	0008	100
OBS / 2 - 18		64	38	23	0009	50
OBS / 2 - 20 - 22	1/2"	74	44	28	0010	50
OBS / 2 - 28	3/4"	95	54	33	0011	50
OBS / 2 - 35	1"	114	64	38	0851	25
