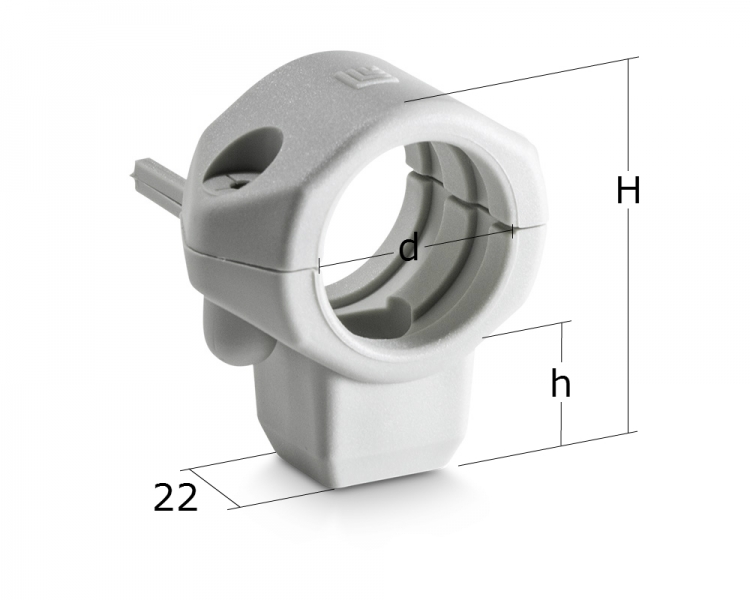

Plastic clamp OBZ with nut
Plastic clamp OBZ with inserted nut M8Use :
For fixing copper, metal and plastic pipes. It is made from two equal halfs, wich are screwed together with two screws. In to the clamp is inserted metal nut M8. It is suitable for use in agresive environments.
Dimensions :
Ø 12 - 35 mmMaterial :
PA (temperature resistance from -30°C to +120°C)| TYPE - Dim. / mm | Ø mm | h / mm | H / mm | ART. NUM. | PACK. |
|---|---|---|---|---|---|
| OBZ - 12 |
16 | 36 | 1640 | 20 | |
| OBZ - 15 | 16 | 36 | 1441 | 20 | |
| OBZ - 17,2 | 3/8" | 16 | 38 | 1637 | 20 |
| OBZ - 18 | 16 | 38 | 1439 | 20 | |
| OBZ - 21,3 | 1/2" | 16 | 42 | 1638 | 20 |
| OBZ - 22 | 16 | 42 | 1440 | 20 | |
| OBZ - 26,9 | 3/4" | 16 | 48 | 1639 | 20 |
| OBZ - 28 | 16 | 48 | 1442 | 20 | |
| OBZ - 33,7 | 1" | 16 | 56 | 1746 | 20 |
| OBZ - 35 | 16 | 56 | 1747 | 20 |
