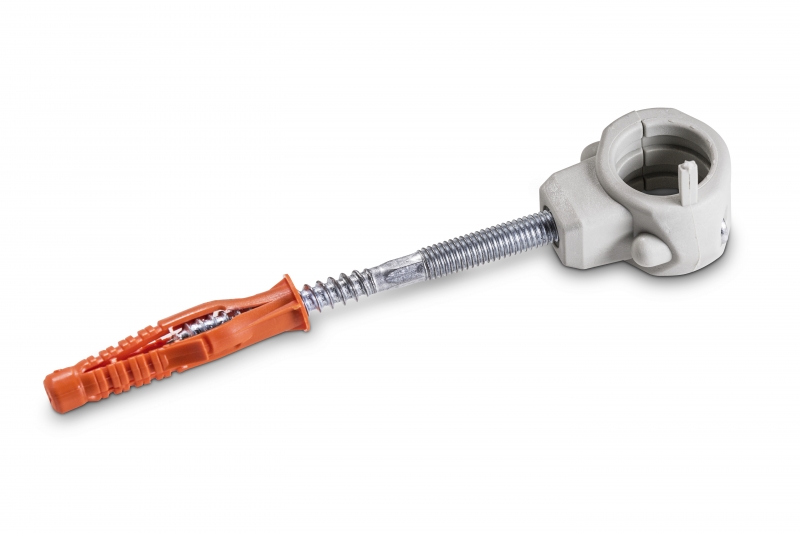

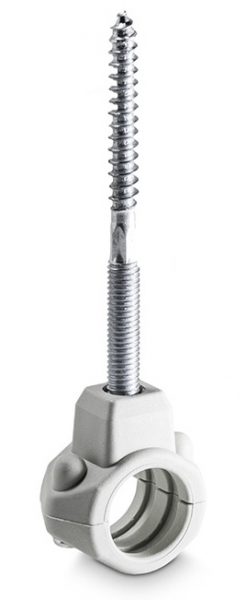

Plastic clamp OBZ/V with hanger screw

Plastic clamp For fixing copper, metal and plastic pipes.

Plastic clamp OBZ/V with inserted nut M8

Use :

For fixing copper, metal and plastic pipes. It is made from two equal halfs, wich are screwed together with two screws. In to the clamp is inserted metal nut M8. It is suitable for use in agresive environments.

Dimensions :

Ø 12 - 35 mm

Material :

PA (temperature resistance from -30°C to +120°C)

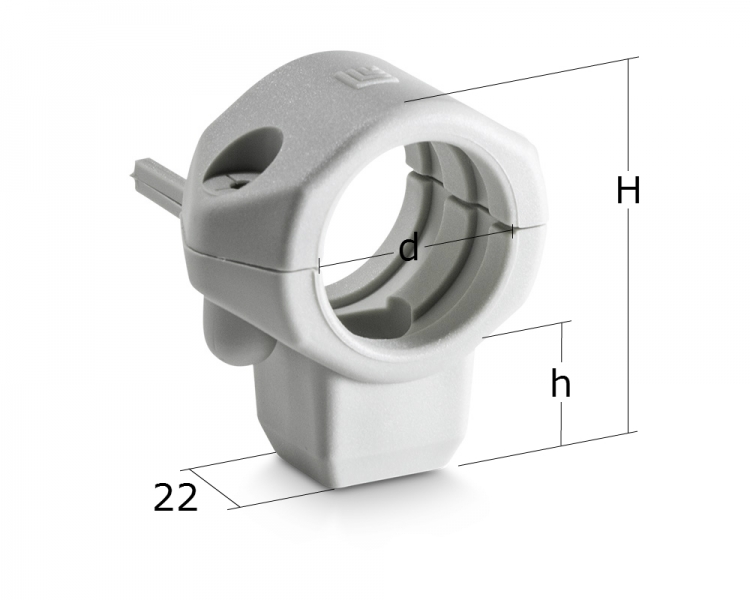

TYPE - Dim. / mm	Ø mm	h / mm	H / mm	ART. NUM.	PACK.
OBZ /V - 12		16	36	1812	20
OBZ /V - 15		16	36	1443	20
OBZ /V - 17,2	3/8"	16	38	1641	20
OBZ /V - 18		16	38	1444	20
OBZ /V - 21,3	1/2"	16	42	1642	20
OBZ /V - 22		16	42	1445	20
OBZ /V - 26,9	3/4"	16	48	1643	20
OBZ /V - 28		16	48	1447	20
OBZ /V - 33,7	1"	16	56	1644	20
OBZ /V - 35		16	56	1749	20
